R60 Android Total Station
FEATURES
ANDROID 11 OS
The Android 11 operating system provides a multitude of possibilities for operators, allowing for easy touch management of jobs and the ability to work with convenient background maps. This operating system enhances the user experience and provides a user-friendly interface.
UP TO 1000M REFLECTORLESS
The R60, available in both 1″ and 2″ versions, can obtain highly accurate long-range measurements. It can measure up to 1000 m without a prism and up to 5000 m with a prism, all with millimeter precision. This level of accuracy makes the R60 a reliable and efficient tool for a variety of applications, from construction and surveying to engineering and beyond.
GNSS CONNECTOR ON THE HANDLE
What sets the R60 apart is its GNSS connector; to perform a mixed survey using both a total station and GNSS, a connector has been placed on the handle to properly position the receiver on the vertical axis of the total station. This allows the operator to easily calculate the position coordinates and assign them as a reference to the total station.
TYPE-C PORT ON BATTERY
The Type-C USB port to charge the battery is a convenient feature that makes it easier than ever to keep your R60 powered up and ready to go.

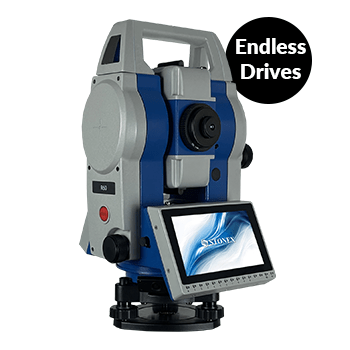

TWO VERSIONS
The R60 is available in two versions, one with an accuracy of 2″ and endless drives, and the other with an accuracy of 1″ and lock drives. With a prism, the instrument has an accuracy of 2 mm + 2 ppm, and it can measure reflectorless up to a range of 1000 m.
CUBE-A ON BOARD
The R60 features Cube-a software, which allows an horizontal view and integration with GNSS surveys.
